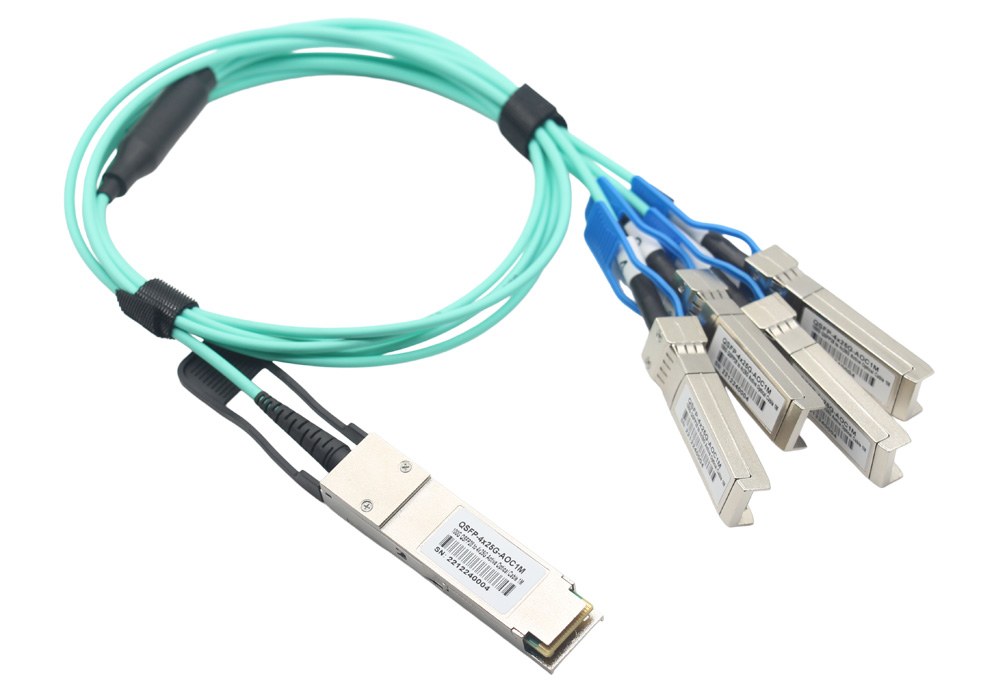

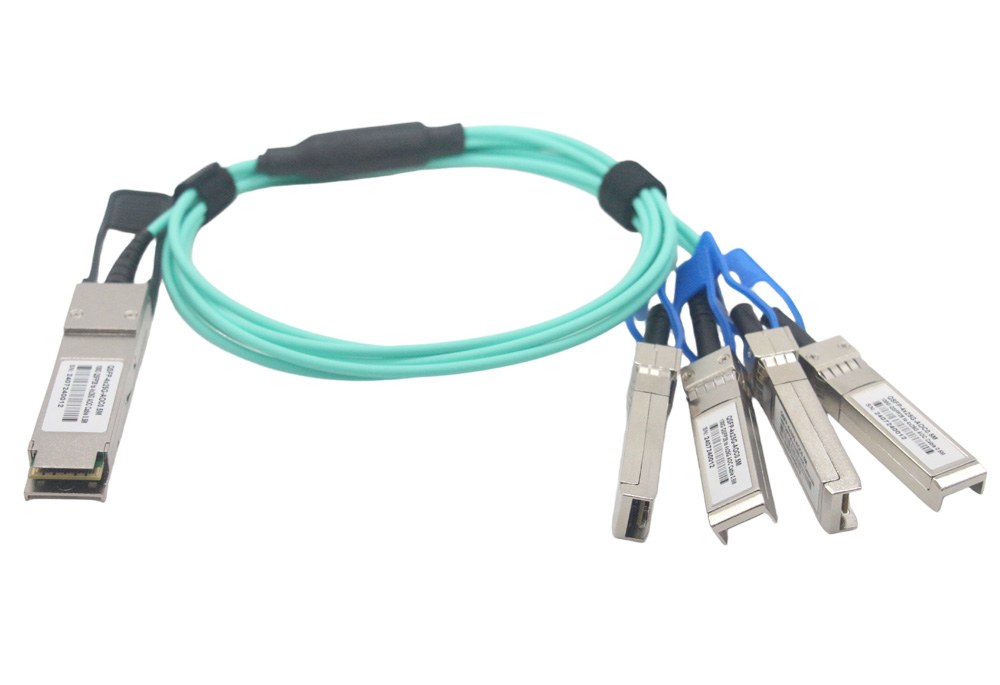

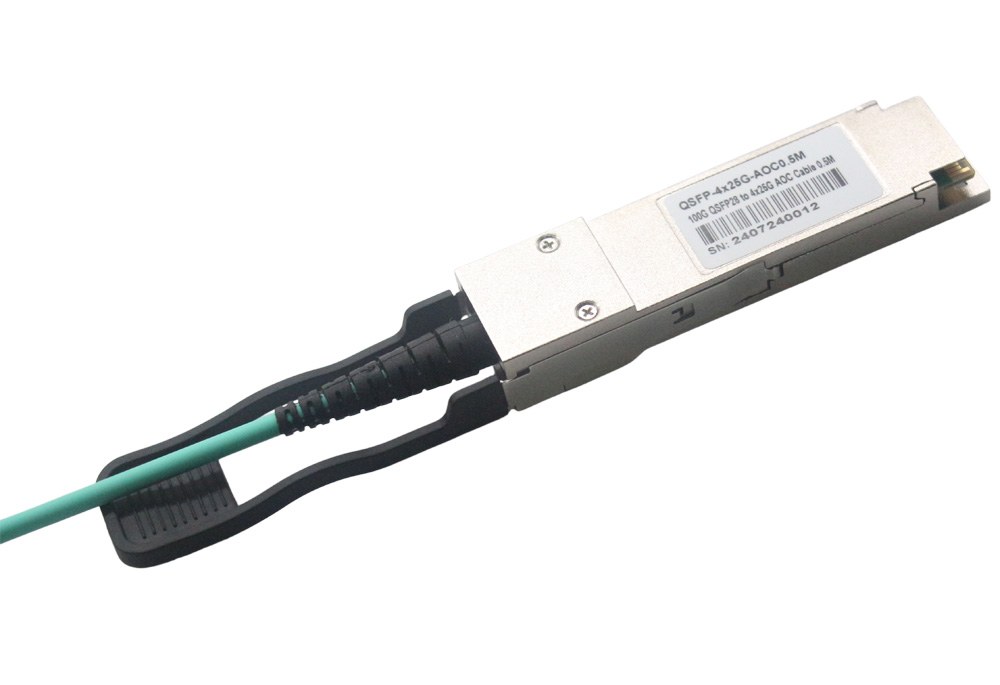

100G QSFP28 to 4x25GBASE QSFP Breakout Active Optical Cable
Four-channel full-duplex active optical cable with breakout from QSFP+ to four SFP+
10.3125 G/s per channel
Reliable VCSEL array technology using multimode fiber
Hot pluggable electrical interface
Single 3.3V power supply, Low power consumption
0 to 70°C case temperature operating range
RoHS-6 compliant (lead-free)
Metal enclosure for low EMI
Product Description of 100G QSFP28 to 4x 25GBASE SFP28 Active Optical Cabl e
The HD-QSFP28/100G-25G4-AOC is a 4-Channel, Pluggable, Parallel, Fiber-Optic 100G QSFP28 to 4X25G SFP28 AOC. This transceiver is a high performance module for short-range multi-lane data communication and interconnect applications. It integrates 4 data lanes in each direction with 100Gbps bandwidth.
These modules are designed to operate over multimode fiber systems using a nominal wavelength of 850nm. The electrical interface uses a 38@QSFP28 and 20@SFP 28 contact edge type connector.
Specifications
Part Number
HD-QSFP28/100G-25G4-AOC-XXM
Application
100G Ethernet，25G Ethernet
Form Factor
QSFP28 to SFP28
Data Rate
103.125Gbps
Wavelength
850nm
Max Length
70m
Cable Jacket
LSZH
Fiber
OM3
Min. Bending Radius
60mm
Receiver
PIN
Transmitter
VCSEL
Power Comsumption
≤2.2W@QSFP28,≤0.8W@SFP28
Power Supply
3.3V
DDM/DOM
Supported
Packaging
COB
Modulation
NRZ
CDR
Yes
Inbuilt FEC
No
Storage Temperature
-40℃ ~ + 85℃
Operating Temperature
0℃ ~ + 70℃
Compatibility
Generic
Class
Commercial
Protocols
IEEE 802.3bm, IEEE 802.3by, SFF-8431
Warranty
Applications
-
100GBASE SR4 Ethernet
-
25GBASE SR Ethernet
Datacom/Telecom Switch & Router connections
High speed multi-channel parallel data connections
High performance computing, server and data storage
The HD-QSFP28/100G-25G4-AOC is a 4-Channel, Pluggable, Parallel, Fiber-Optic 100G QSFP28 to 4X25G SFP28 AOC. This transceiver is a high performance module for short-range multi-lane data communication and interconnect applications. It integrates 4 data lanes in each direction with 100Gbps bandwidth.
These modules are designed to operate over multimode fiber systems using a nominal wavelength of 850nm. The electrical interface uses a 38@QSFP28 and 20@SFP 28 contact edge type connector.
| Part Number | HD-QSFP28/100G-25G4-AOC-XXM | Application | 100G Ethernet，25G Ethernet |
| Form Factor | QSFP28 to SFP28 | Data Rate | 103.125Gbps |
| Wavelength | 850nm | Max Length | 70m |
| Cable Jacket | LSZH | Fiber | OM3 |
| Min. Bending Radius | 60mm | Receiver | PIN |
| Transmitter | VCSEL | Power Comsumption | ≤2.2W@QSFP28,≤0.8W@SFP28 |
| Power Supply | 3.3V | DDM/DOM | Supported |
| Packaging | COB | Modulation | NRZ |
| CDR | Yes | Inbuilt FEC | No |
| Storage Temperature | -40℃ ~ + 85℃ | Operating Temperature | 0℃ ~ + 70℃ |
| Compatibility | Generic | Class | Commercial |
| Protocols | IEEE 802.3bm, IEEE 802.3by, SFF-8431 | Warranty |
|
-
100GBASE SR4 Ethernet
-
25GBASE SR Ethernet
Datacom/Telecom Switch & Router connections
High speed multi-channel parallel data connections
High performance computing, server and data storage
