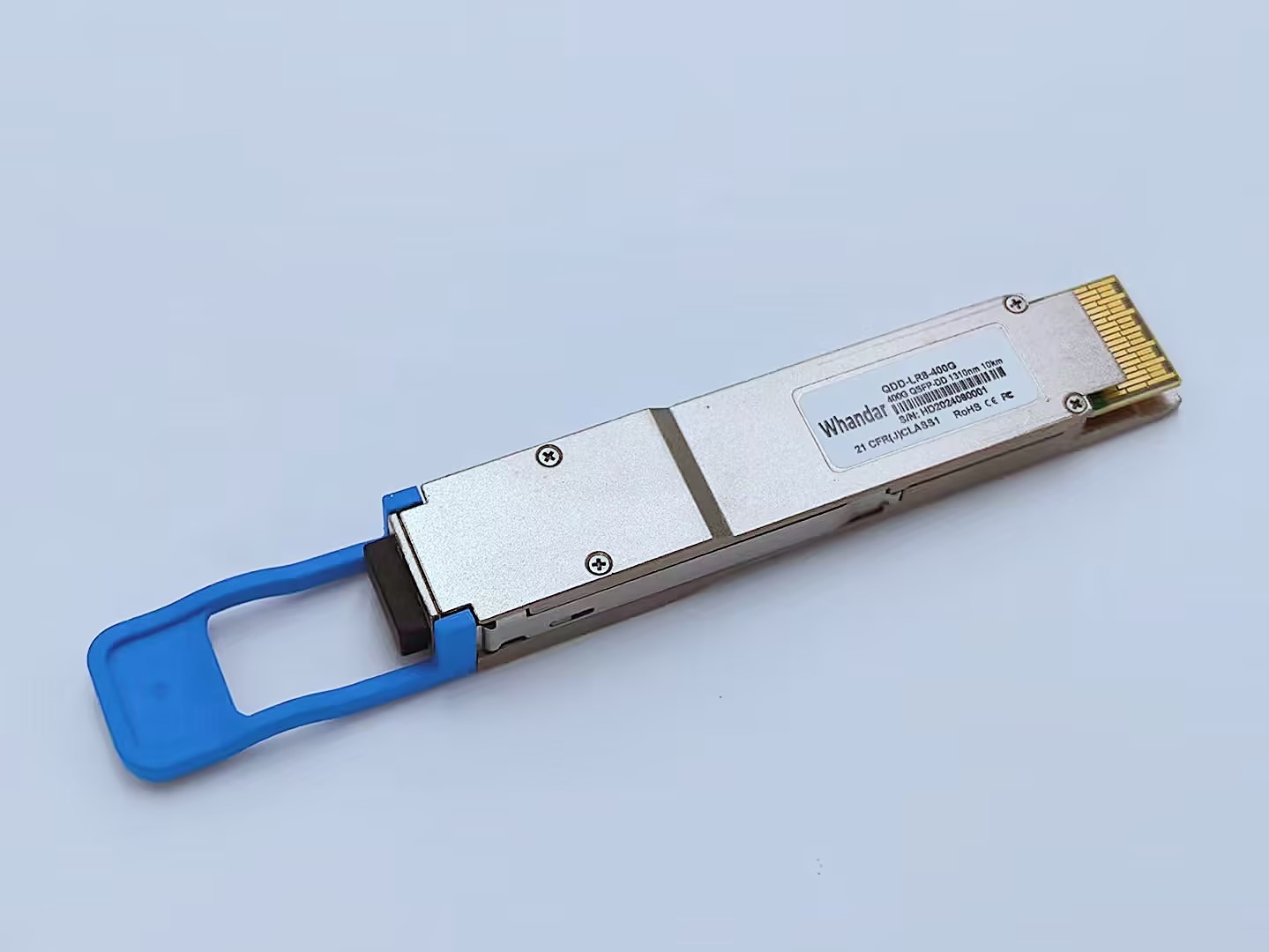

QDD-400G-LR8 Compatible 400GBASE-LR8 QSFP-DD PAM4 10KM

Product Highlights

Built-in Inphi DSP Chip, Max. Power Consumption 10W

Tested in Targeted Switches for Superior Performance, Quality, and Reliability

Compliant with QSFP-DD MSA CMIS Rev4.1, OIF 56G PAM4

Hot Pluggable QSFP-DD Form Factor

High-speed Electrical Compliant to IEEE 802.3bs

8x 50G PAM4 Retimed 400GAUI-8 Electrical Interface

QSFP-DD Port is Backward Compatible with QSFP+, QSFP28 and QSFP56 Modules

Class 1 Laser Safety and RoHS Compliant

Optical Transceiver Module (SMF, 1310nm, 10km, LC, DOM)

The 400GBASE-LR8 module, Duplex LC connector, up to 10km over parallel single-mode fiber. It is compliant to IEEE 802.3bs protocol and 400GAUI-8/CEI-56G-VSR-PAM4 standard.
The 400 Gigabit Ethernet signal is carried over eight wavelengths. Multiplexing and demultiplexing of the eight wavelengths are managed within the device.

Specifications
