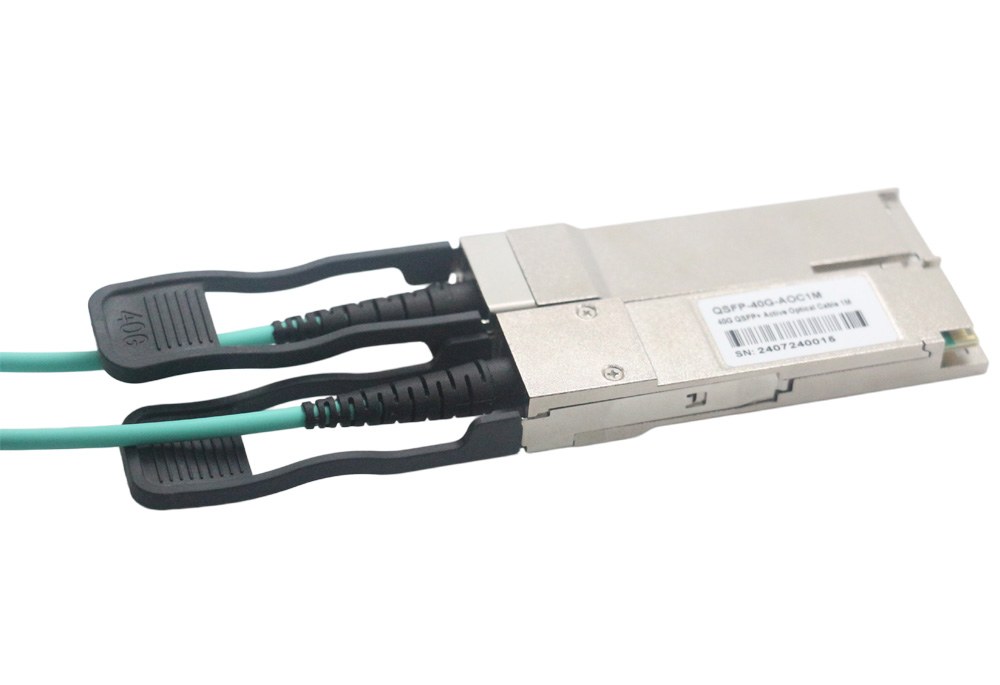

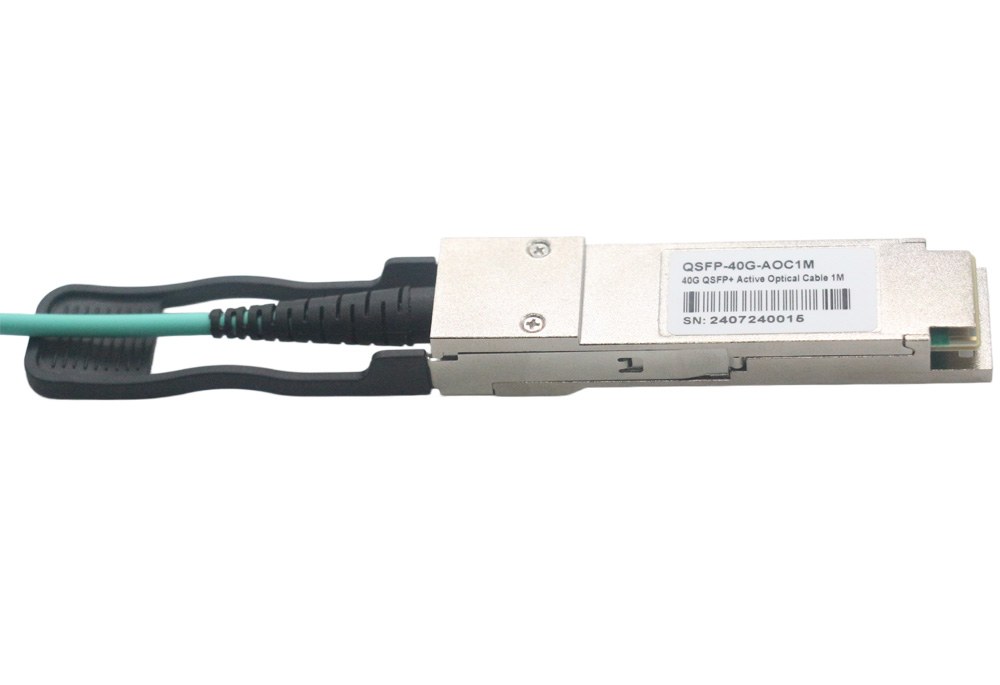

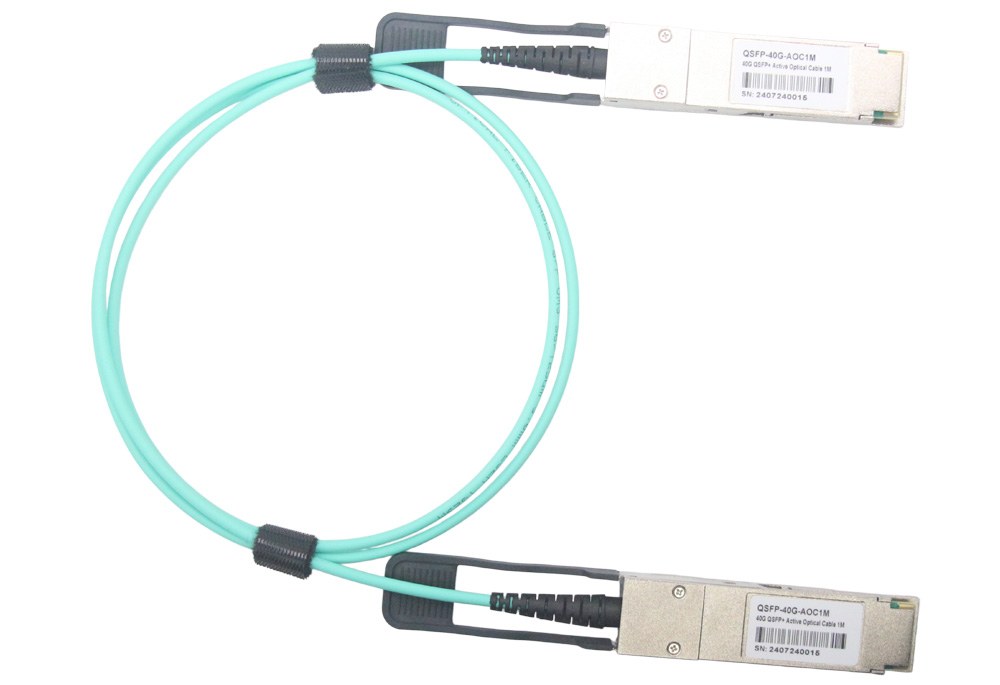

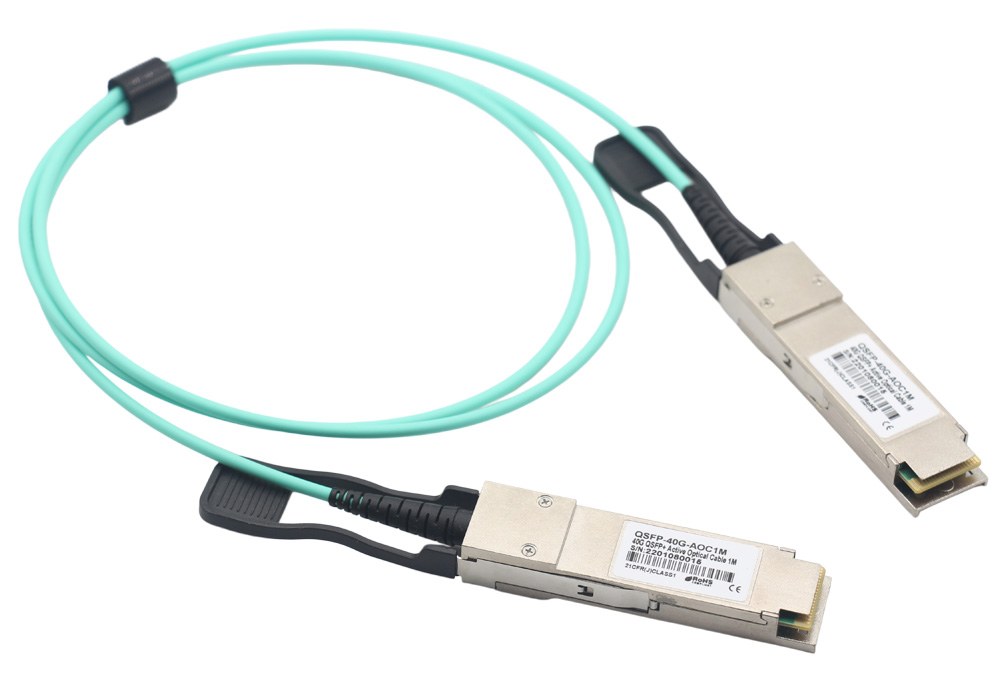

QSFP-40G-AOC active optical cable is a Parallel 40Gb/s Quad Small Form-factor, Hot-Pluggable 850nm parallel AOC.

The module integrates 4 independent transmitters and 4 independent receivers in side. Four-channel 850nm VCSEL array, PIN array ，amplifier and Driver are used in the module for compact size,low power consumption and low cost.

The AOC is compliant to the industry standard SFF-8436 QSFP+ Transceiver Specification.The electrical interface uses a 38 contact edge type connector.The optical interface uses an 8 or 12 fiber MTP(MPO) connector.

QSFP-40G-AOC active optical cable features small size, parallel multi- channel, hot-pluggable, low power and high speed operation. It ’s very suitable for high speed short-distance density data connections such as 40G BASE-SR4, Switch & Route interconnects etc.

• 10GBASE-SR &40GBASE-SR4 40G Ethernet

  Datacom/Telecom Switch & Router connections

  High speed multi-channel parallel data connections

  High performance computing, server and data storage

  Infiniband QDR/DDR/SDR
