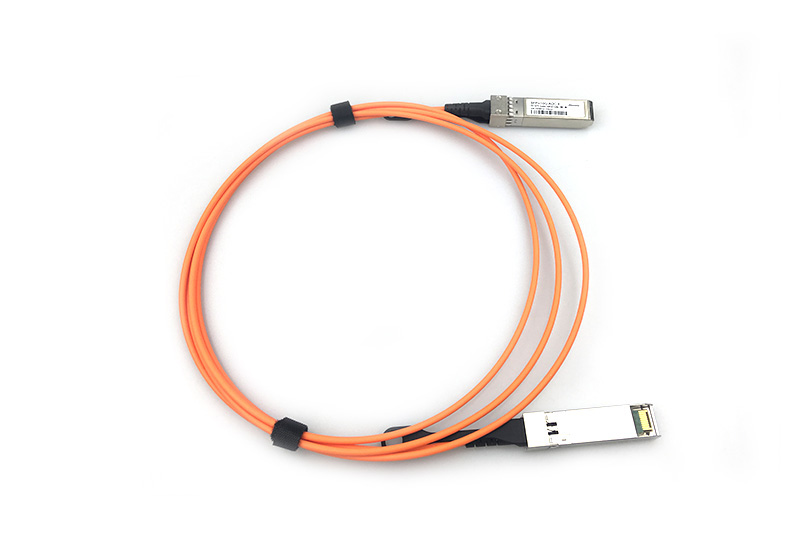

10G SFP+ Active Optical Cables

1. Applications

Ø Datacom

Ø 10G Ethernet

Ø Other high-throughput data transmission network

2. Features

Ø 10Gb/s active optical cable up to 100m OM2 MMF

Ø 850nm VCSEL and PIN receiver

Ø Single 3.3V power supply

Ø Operating Case Temperature: -5~75℃

Ø Hot pluggable

Ø Low Power Consumption

Ø Light weight

Ø Small Bend Radius

Ø Digital Diagnostic Monitor(DDM)

Ø All-metal Housing for Superior EMI Performance

3. Description

Handar's SFP+ Active Optical Cable (AOC) is a 10Gbps solution to10G Ethernet, and datacenter. The integrated cable transmits 10Gbps data in each direction over MMF with distance up to 100m. The AOC is SFP+ MSA compliance, low power consumption and lightweight.
