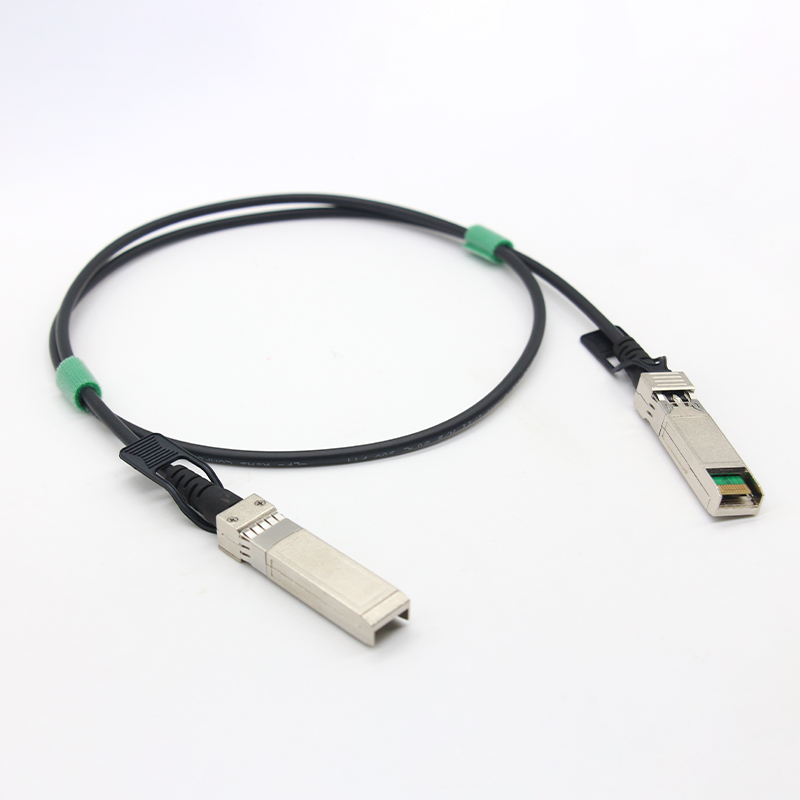

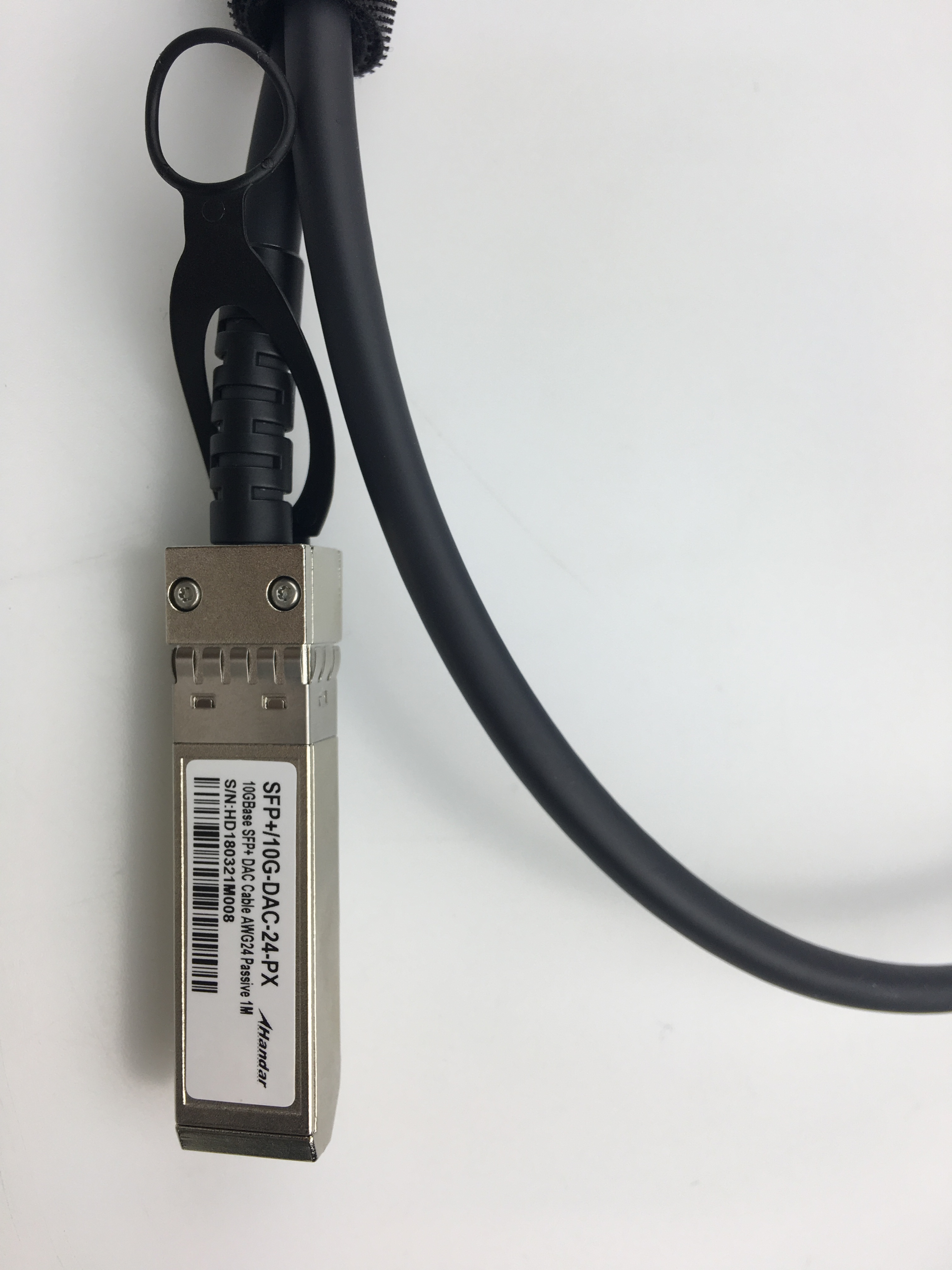

10G SFP+ Direct Attach Passive Copper Cables

1. Applications

Ø 10G Ethernet

Ø InfiniBand, Fiber Channel 4G/8G/10G

Ø Sonet Multiplatform support

Ø High Performance Computing Clusters

Ø High End Servers

Ø Metro Network Switch/Cross Connect

2. Features

Ø Support for multi-gigabit data rates up to 10.5Gbps

Ø Data rates backward compatible to 1Gbps

Ø Support for 1x, 2x, 4x and 8x Fiber Channel data rates

Ø Hot-pluggable SFP 20PIN footprint

Ø I/O Connector designed for high speed differential signal applications

Ø Improved Pluggable FormFactor(IPF) compliant for enhanced EMI/EMC performance

Ø Low Power Consumption < 0.5W

Ø Power Supply :+3.3V

Ø Compatible to SFP+

Ø Temperature Range: 0~ 70 °C

Ø RoHS Compatible

3、Description

Handar's High speed SFP+ Direct Attach Cable (DAC) provides high performance in 10 Gigabit Ethernet (10GbE) network applications, using an enhanced SFP+ connector to send 10Gbps data through one paired transmitters and receivers over a thin twinax cable. They are compliant with electrical standards SFF-8431, SFF-8083 and mechanical standard SFF-8432, EEPROM standard SFF-8472.
